DentaMile Desk MC system
All-in-one system: Jump straight into the world of digital dentistry
The DMG DentaMile Desk MC system offers you everything you need for dental 3D printing in a compact format: the 3D printer, cleaning unit and post-curing unit can easily be placed next to one another absolutely anywhere. Plug and Play technology means you can get started straight away. And the best thing is: the coordinated complete system guarantees a validated manufacturing process – at all times.
Simple, practical and intuitive: The DentaMile Desk MC system
Have you been toying with the idea of getting a 3D printer for a while now, but you don’t have enough space or time to get to grips with functions and technology? Then we’ve got the perfect solution for you: the DMG DentaMile Desk MC system. It consists of the compact DentaMile Desk MC-5 3D printer, the Wash MC cleaning unit and the Cure MC post-curing unit. Everything is perfectly coordinated and can be put to immediate use thanks to Plug and Play technology. To help you get started, we have created a handyQuick Start Guide.
Using DMG DentaMile workflows with the DentaMile Desk MC system
The three units within the DentaMile Desk MC system are coordinated with one another – and with the digital workflows of the DentaMile connect software. The cloud-based software makes designing dental appliances easier with its intuitive workflows. This allows you to design dental applications one step at a time and print them with the appropriate materials. Then you can clean the 3D-printed object in the DentaMile Wash MC and cure it in the DentaMile Cure MC – all quickly and precisely.
+

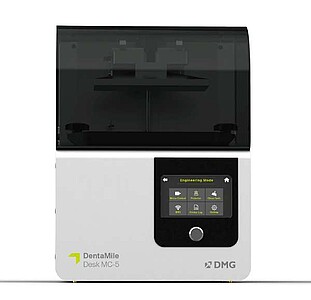

The benefits of theDentaMile Desk MC-5:
The DentaMile Desk MC-5 simply fits anywhere thanks to its compact dimensions. The 3D printer has a large build area and enables production of several workpieces at the same time.
Benefits of the 3D printer
- Compact size
- Suitable for a wide spectrum of dental 3D applications
- High precision
- Outstanding price-performance ratio
Benefits in use
- User-friendly and simple user guidance
- Cover open on three sides for a larger working space
- Intelligent networking with DentaMile connect
- Compatible with all standard dental CAD programs (STL files)
Benefits in safety
- Reproducible results thanks to a software-supported, validated application
- Reliable service structure
- Developed, quality-tested and calibrated in Germany
Technical data
| Dimensions | 30 x 40 x 42.26 cm / 16 kg |
| Build platform | 13 x 7.31 x 9 cm |
| Technology | DLP@ 385 nm |
| Native pixel resolution | 68 μm |
| Connections | 2 USB ports, 1 LAN port, 1 mains connection outside |
| Additional information | 2K light engine 5” colour touch display WLAN and LAN High-precision image alignment and orientation correction process |
+
The benefits of theDentaMile Wash MC:
Preset cleaning programmes simplify the use of the DentaMile Wash MC. A generously sized cleaning container enables several wash cycles and, thanks to the removable basket, the used liquid can be professionally disposed of directly without making a mess.
Benefits of the cleaning unit
- Designed for numerous wash cycles
- Removable basket
- Magnetic mixer
Benefits in use
- Fast and fully automatic cleaning of the 3D-printed objects
- Preset cleaning programmes
- Colour touch display with simple user guidance
- Guaranteed efficient use of the cleaning fluids
+

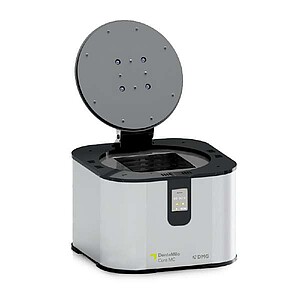

The benefits of theDentaMile Cure MC:
The DentaMile Cure MC post-curing unit completes the DentaMile Desk MC system and is just as compact in size and easy to use as the 3D printer and the cleaning unit. The LED arrangement enables uniform curing of the 3D-printed objects. Due to the dual-frequency technology comprising two wavelengths, the unit can be used to cure different types of synthetic resins.
Benefits of the post-curing unit
- UV exposure with exclusive Omni 360° technology for uniform curing
- Dual-frequency technology with 2 wavelengths (385 nm, 405 nm)
- Suitable for various light-curing synthetic resins
Benefits in use
- Fully automatic material curing programmes
- Protection from UV radiation due to opaque walls and safety OFF system
- Network connectivity
