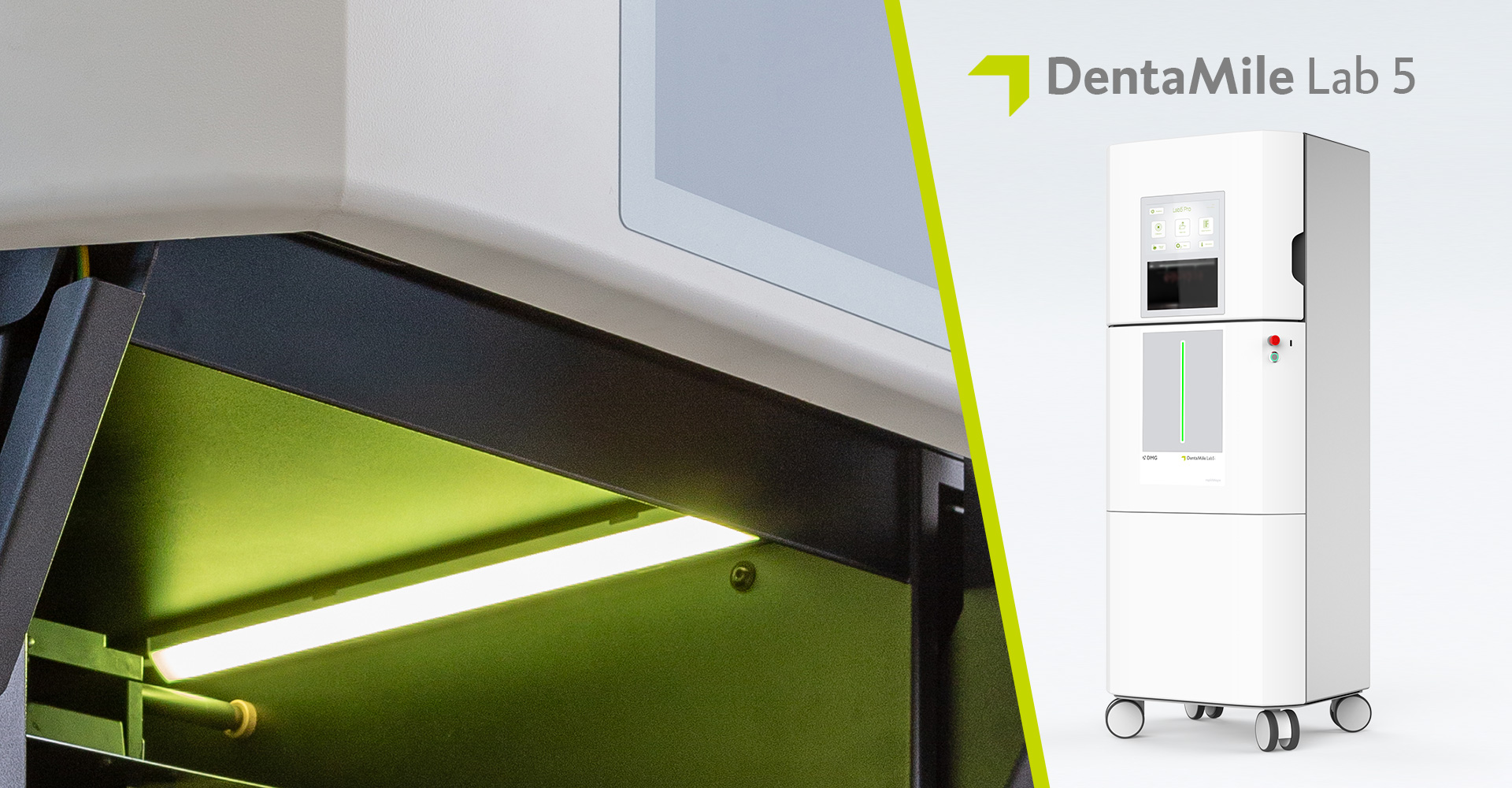

DentaMile Lab5 System
The professional printer for high volumes and efficiency
The DentaMile Lab5 Pro is the professional 4K 3D printer you need for efficient series production. DentaMile’s new Lab5 Pro printer allows cost-effective high-volume printing. To this end, the high-precision 3D printer offers an especially large build platform, as well as the option to print several print jobs automatically in succession.
+
The benefits of DentaMile Lab5 Pro:
Benefits of the printer
- Professional high-precision 4K light source
- Print chamber can be heated up to 35 °C
- Integrated Force Feedback system
Benefits in use
- Large build area for the simultaneous manufacturing of several workpieces
- Exceptionally high processing speed
- Precision without compromise
Benefits in safety
- Software-supported, validated application creates reproducible dental device results
- Safety via material identification (RFID)
- Compatible with all standard dental CAD programs (STL files)
- Automatic refill and cut-off function for completed print objects (ASM)
Technical data
| Size (W/D/H) | 600 x 570 x 1660 mm |
| Build area | 231 x 130 x 300 mm (basic version DentaMile Lab5) or 100 mm (ASM version DentaMile Lab5 Pro) |
| Max. workpiece height | 300 mm (DentaMile Lab5) or 100 mm (DentaMile Lab5 Pro) |
| Native pixel resolution | +/- 30 μm |
| Connections | WLAN, TCP/IP, USB |
| Weight | 110 kg (DentaMile Lab5) 120 kg (DentaMile Lab5 Pro) |
| Resolution | 4K (3840 x 2160 px) with 385 nm LED |
+

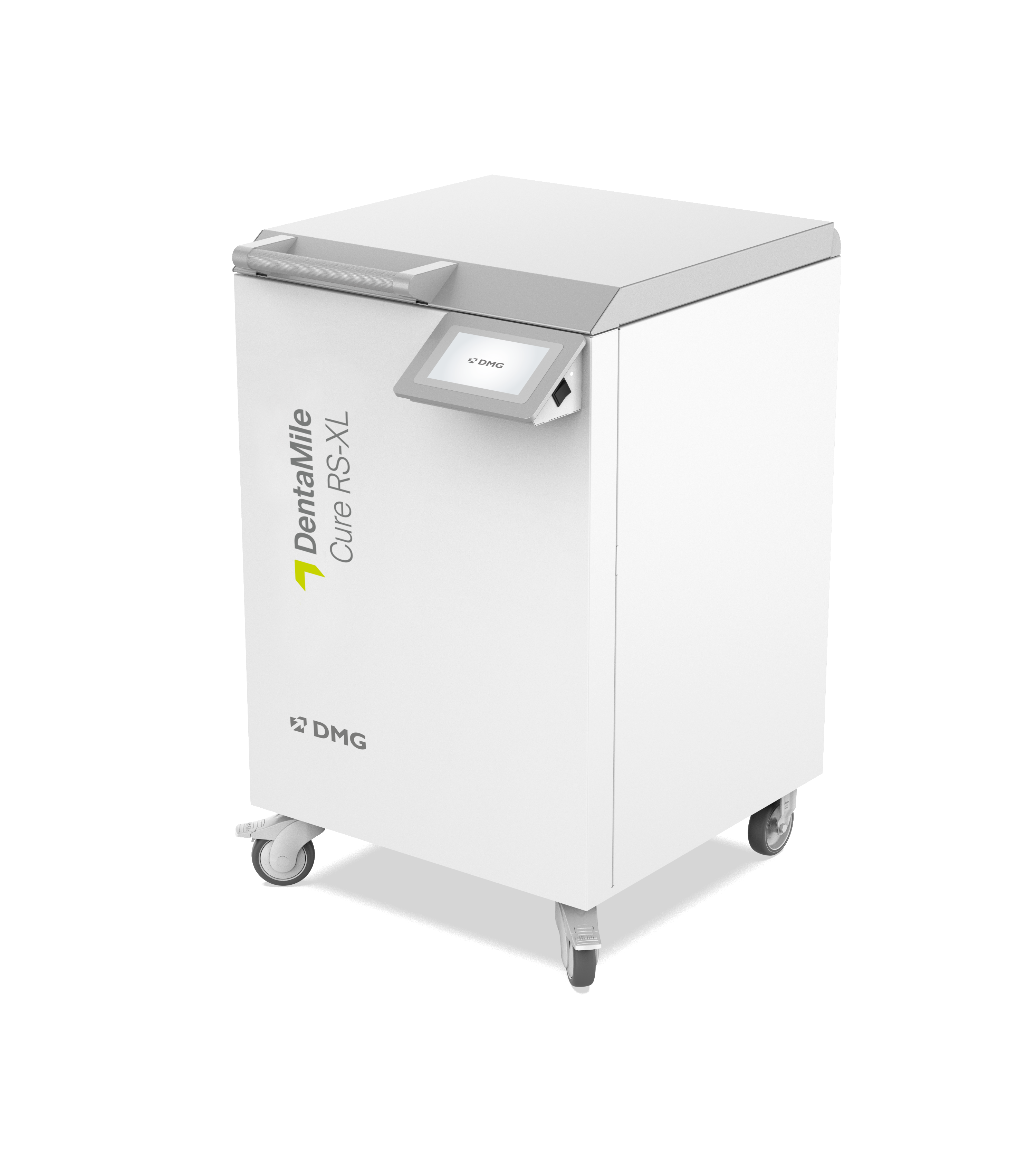

The benefits of theDentaMile Cure RS-XL:
- Large volume:
Enables the simultaneous post-curing of multiple printed components (up to 36 models at the same time). - 360° curing:
Ensures uniform post-curing of all surfaces of the printed object. - Modern vacuum technology:
Shortens post-curing times while maintaining high quality. - Gas free use:
The use of vacuum means that no gas is required during operation, which significantly reduces operating costs.
- Fully automatic material curing programmes
- Integrated touchscreen
- Network connectivity
- Easy calibration with ACCS sensor to ensure functionality
- 360° UV illumination for uniform curing
